Electrical Boxes

Square Electrical Box - Standard

The EB-8-ST, standard raised floor electrical box provides both power and telecommunications compartment for cable floors with a minimum height of 4.75 inches. The power compartment can accommodate 2 duplex receptacles and, the telecommunications compartment can accommodate up to 2 decora size data outlets.


Features


  • 15/20 Amp 120/208V or 120/240V 60 Hz.

  • Size of the box is 4.23 inch height x 8 inch square

  • Rated for 1250 lbs load capacity.

  • Durable metal lid and body.

  • 16 gauge galvanized steel box construction.

  • Hinged lid with recess to accept carpet inserts (carpet by others) or without recess for flush tile applications.

  • "Indented" finger pull handle.

  • Each opening has a knock out to accept a single gang data plate of 2.73" x 1.37" cutout.

  • Data plate provided by others.

  • Provided in standard black finish.

Canadian product

Canadian Product

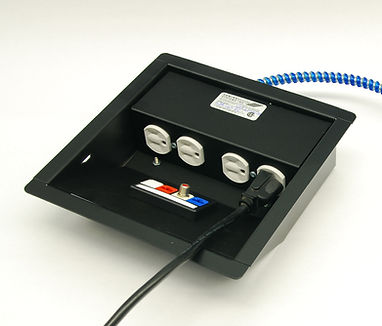

Rendering of a square electrical box - standard
